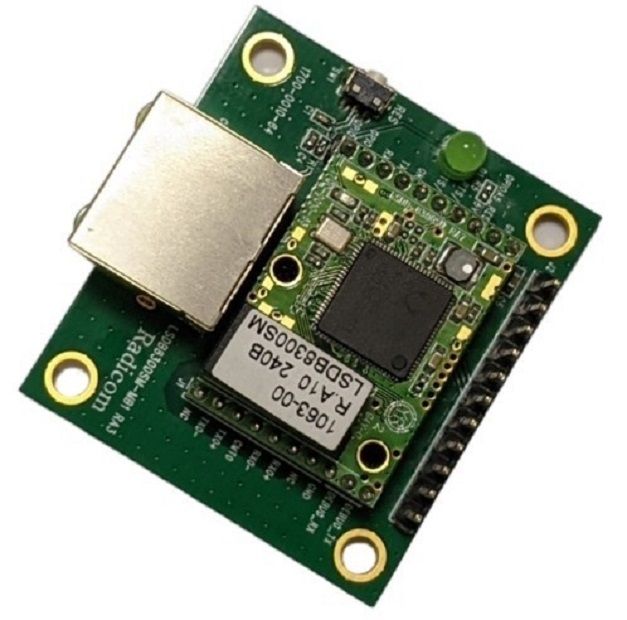

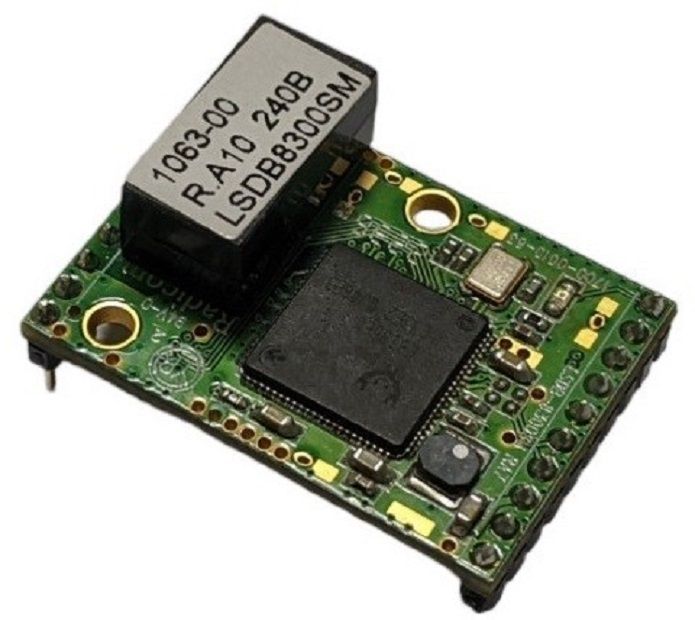

LSDB8300 series offers an embedded solution for a LAN to Serial or LAN to Modem interface. The LSDB8300SM Module provides the reserved through hole (DIP) pin headers for the Serial Port TTL I/O and Ethernet pins that allow the Jacks to be placed in preferred locations. The TTL I/O can then be converted to RS232 signaling and connected to a DB9 connector to provide a fully compliant V24/V28, RS232 interface. This product allows serial data communication with any 10/100 Based-T Ethernet LAN.

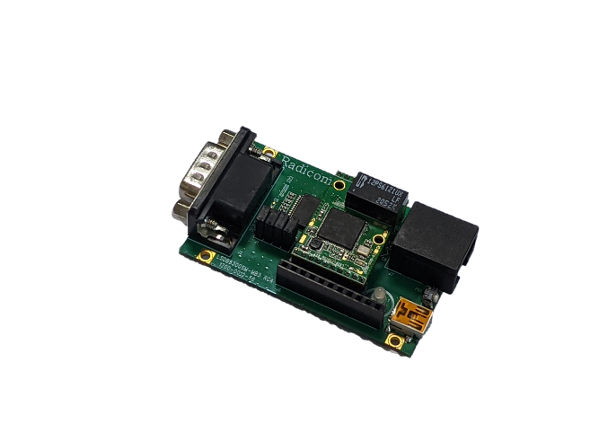

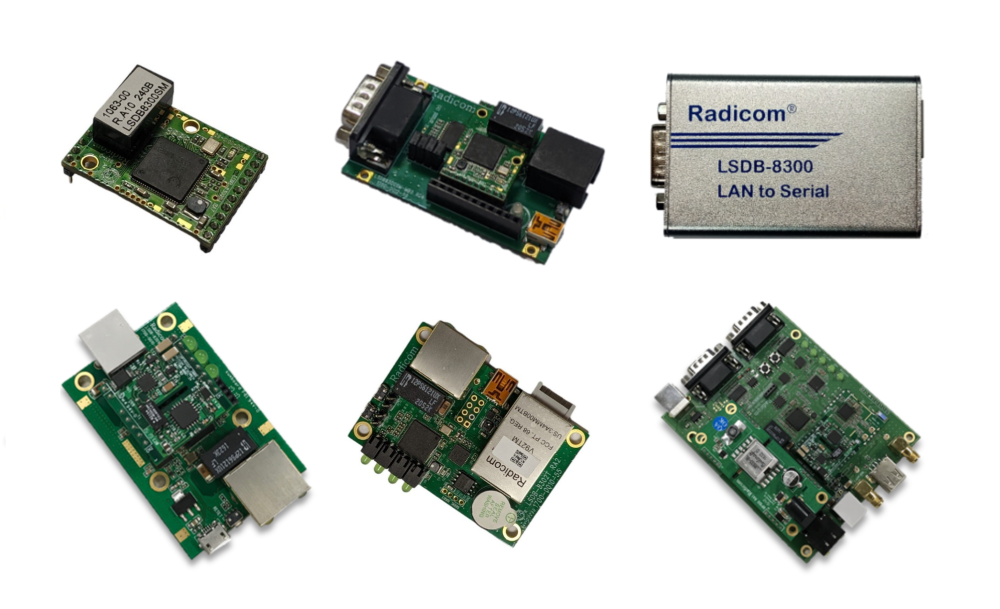

LSDB8300 family is available in various hardware designs. The LSDB8300SNE is a standalone product embedded with a RJ45 Ethernet jack to provide the LAN interface and DB-9 for RS232 direct plug-in. The LSDB-8302T is a standalone product provides easy connection to any standard LAN port and Tiny Modem dial-up network. The LSDB8303A is an All-in-one solution to provide POE, SIA alarm Modem, WiFi and RS232/485. LSDB8301HM is a small form factor of LAN to SIA alarm and LASDB8301HC is not only provide analog SIA modem as well as emulate central office with line current provided. The LSDB8300EVK along with LSDB8300MB development board also provides RJ45 and DB9 connectors for LSDB8300M module testing and developing purpose.
The onboard LAN functions are designed to meet the widely adopted IEEE Std. 802.3™ with automation and buffering. The integrated serial port includes standard serial terminal features such as flow control, character length and a DTE speed of 921.6Kbps. The LSDB8300 series includes Flash memory allowing for updating firmware with the latest enhancements and for custom applications. Users can make changes to web server applications such as configuration of local hardware using Telnet or FTP.
For more information, please contact: sales@bluepacket.net
LAN Features
- Designed to meet IEEE Std. 802.3™
- Supports IEEE 802.3az energy efficient Ethernet ability for 100Base-TX
in full duplex operation and 10/100Base-T in full/half duplex mode
- Supports Green Ethernet
- Cable length power saving
- Link down Power saving
- Supports link down power saving in Ethernet PHY receivers.
- Ethernet port auto-crossover function.
- Complete Serial-to-LAN solution with network processor, MAC (media access controller) and PHY interface.
- Multiple IP Address Configuration Modes: DHCP / Static IP mode
- Supports TCP/IP, ICMP, ARP, DHCP client, DNS, FTP client, POP3, SMTP, Telnet server and UDP protocols
- 10/100Mbps Ethernet
- Web-based configuration
- LED I/O to reflect LAN connection and link activity
Serial Port Features
High speed (921.6Kbps) UART
Baud rates:2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600
Parity Bits: Odd, Even, None
Data Bits: 7, 8 ~ Stop Bits: 1 or 2
Hardware (RTS/CTS) flow control
Remotely access serial port via Internet application
640/576 bytes Transmit/Receive FIFO buffer.
HM4 Modem Features (LSDB8301HM or LSDB8301HC or LSDB8303A)
Maximum Data Rate: 56,000 bps ~ V.92
Send/ Receive 14.4K Fax class 1 and 1.0
Extension Pickup and Line in use Detection
Automatic Auto Answer Feature
SIA alarm
TAM (Telephone Answering Machine Voice Playback and Remote Recording)
Type I Caller ID (On Hook Caller ID) and Type II Caller ID (Call Waiting Caller ID)
ITU V Standards Supported: V.92, V.90, V. 80, V.44, V.42, V.42bis, V.34, V.32bis, V.32, V.29 Fast POS, V.27 ter, V.253, V.251, V.250, V.22 bis, V.22, V.22 bis Fast Connect, V.23, V.21, V.17 as well as Bell 212A, and Bell 103 Standards
Tiny Modem Features (LSDB8302T)
Maximum Data Rate: 56,000 bps ~ V.92
Send/ Receive 14.4K Fax class 1 and 1.0
Extension Pickup and Line in use Detection
Automatic Auto Answer Feature
TAM (Telephone Answering Machine Voice Playback and Remote Recording)
Type I Caller ID (On Hook Caller ID) and Type II Caller ID (Call Waiting Caller ID)
Note:
ITU V Standards Supported: V.92, V.90, V. 80, V.44, V.42, V.42bis, V.34, V.32bis, V.32, V.29 Fast POS, V.27 ter, V.253, V.251, V.250, V.22 bis, V.22, V.22 bis Fast Connect, V.23, V.21, V.17 as well as Bell 212A, and Bell 103 Standards
WiFiHU2(S) Features (LSDB8303A)
Compliant with the IEEE802.11n™ specifications
Backward compatible with 802.11b/g devices
300Mbps receive PHY rate and 300Mbps transmit PHY rate using 40MHz bandwidth
150Mbps receive PHY rate and 150Mbps transmit PHY rate using 20MHz bandwidth
Operates in 2.4GHz frequency bands
Fast receiver Automatic Gain Control (AGC)
2 U.FL TX/RX antenna ports
