RB8762C module is designed to meet the emerging market for Bluetooth 5.3 applications. These embedded Bluetooth 5.3 modules integrate entire profiles, applications, and Bluetooth protocol stack, and no external processor is needed. It also contains 256KB flash memory and 80KB RAM.
The RB8762C can be factory configured for other Bluetooth cost-effective and power-efficient . Contact BluePacket for help to add the BLE Data Protocol functionality to your 5.3 Bluetooth device or for help in determining which Bluetooth Module is the best fit for your particular Bluetooth application.
The RB8762C family modules can be powered with standard 3.3V low power. In lowest mode it consumes only 1.1 nA level power and will wake up in few hundred microseconds. The RB8762C family provides superior performance in the presence of interference from 802.11 (WiFi) wireless devices and other 2.4GHz radios.
The RB8762C modules support quick connections and data transfers allowing an application to establish a Bluetooth connection within a few milliseconds for short communication bursts before quickly disconnecting the Bluetooth connection to save power. It takes much less time to make a connection than conventional Bluetooth wireless technology and consumes approximately only 1/20th of the power of Bluetooth Basic Rate.

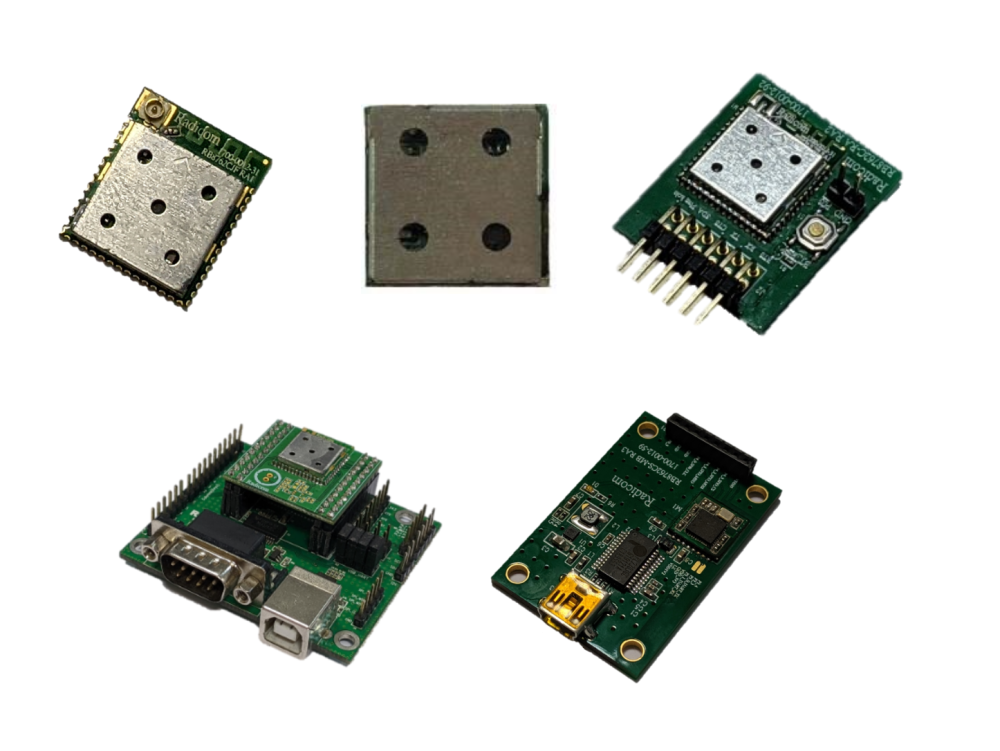

The RB8762C is available in surface mount (SMD) or through-hole (DIP) hardware designs. The RB8762C module is the surface mount model. The RB8762C can also mount on a conversion board to create the RB8762C-HM model for serial through-hole designs.
RB8762C-EVK (development kits) as a quick platform for testing and evaluating the RB8762C and RB8762C-HM Bluetooth modules. The kit includes two RB8762C modules mounted on the RB8762C-HM DIP Module. Each RB8762C-HM is installed into a RB8762-MB evaluation board.One of the RB8762C-HM is configured to operate in BLE Data Protocol Master Mode.The other RB8762C-HM is configured to operate in BLE Data Protocol Slave mode.
The RB8762-MB boards have an RS232 Serial Port connector and USB interface that allows the user to immediately connect to any standard serial port to evaluate the Bluetooth modules.
For more information, please contact: sales@bluepacket.net
Features
- Support the Bluetooth 5.3 core specification
- Frequency Range 2.402 – 2.480 GHz
- Integrate MCU to execute Bluetooth protocol stack
- Ultra low power consumption with intelligent PMU
- Supports Master and Slave modes
- Support fully multiple Low Energy states
- Support LE L2CAP Connection Oriented Channel Support
- Support LE low duty directed advertising
- Support LE data length extension feature
- Integrated Bluetooth low energy stack including ATT, GATT, SMP, L2CAP, GAP
- Generic Applications for GAP Central, Peripheral, Observer and Broadcaster Roles
- Support OTA (Over-the-Air) programming
- Firmware upgradeable through serial port
- Support internal 32KHz OSC or external 32KHz clock input for low power mode
- Low power 3.3V operation
- TX Power: 7.5 dBm Max ~ RX Sensitivity: -97dBm Min
- Range: Up to 20 meters (line of sight)
- 34 GPIOS (max)
- Hardware Key scan and Quad-decoder
- Embedded 4Mbit flash
- Embedded IR transceiver
- Embedded 8-CH 12-bit ADC
- Support AES128/192/256 encrypt/decrypt engine
- Serial Interface (SPI / I2C / PWM)
- Support 4wire SPI master/slave
- Wake-up interrupt
- Watch Dog Timer
- Small sizes: RB8762C ~ 0.59” x 0.69” x 0.11”
RB8762C-RA ~ 0.97” x 1.22” x 0.40”
RB8762CS ~ 0.40” x 0.40” x 0.11”
- On-board microprocessor, RAM and ROM
- On-board antenna or on-board U.FL connector for external antenna
- -40°C to +85°C temperature operating
Approvals
FCC Certification
- FCC Part 15.247
CE Certification
- ETSI EN 300 328 V2.2.2 (2019-07)
- EN301 489 -1 V2.2.3 (2019-11)
- EN301 489-17 V3.2.4 (2020-09)
IC Certified
- RSS-247 Issue 2
NCC Certified
- ANSI C63.10-2013
Declaration ID
- D057234
RoHS 3 and REACH Compliant
