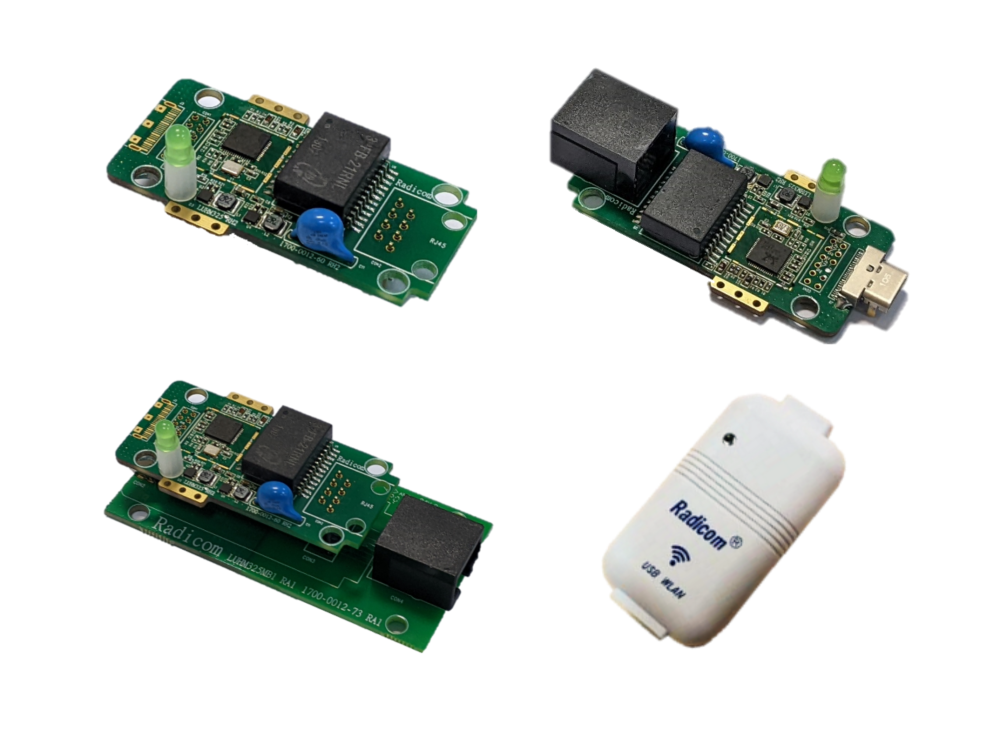

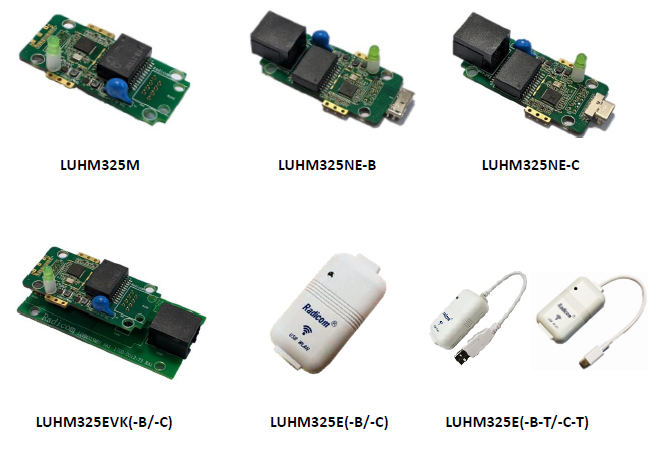

LUHM325 Low-power USB 3.0 to 10/100/1000M/2.5G Gigabit Ethernet adapter is a high performance and highly integrated device which enables a small form factor, and simple plug-and-play 2.5 Gigabit Ethernet network connection capability for desktops, notebook PC’s, Ultra-Mobile PC’s, docking stations, game consoles, digital-home appliances, and any embedded system using a standard USB port.
The LUHM325 is equipped with a powerful pipeline RISC engine to handle protocols and control functions of 2.0 and 3.0 USB super/high/full Speed modes and 10/100/1000M/2.5G Gigabit Ethernet LAN as well as advanced power management features and Wake-on-LAN are implemented to make the LUHM325 become the best fit for all kinds of LAN accessibility applications.
For more information, please contact: sales@bluepacket.net
Features
- Single chip USB 3.0 to 2.5 Gigabit Ethernet controller
- USB Device Interface
- Integrates on-chip USB 3.0 PHY transceiver and controller to compliant to USB Spec 2.0 and 3.0.
- Supports USB super/high/full speed modes.
- Supports LPM (Link Power Management), U1/U2/U3 at super speed, and L1/L2 at High Speed
- Supports CDC-NCM
- Supports CDC-ECM
- Gigabit Ethernet Controller
- Integrates 10/100/1000M/2.5Gbps Transceiver
- Supports 2.5G and LG Lite mode
- IEEE 802.3, 802.3u, 802.3ab compatible
- Supports pair swap/polarity/skew correction
- Support cross over detection and auto correction
- Supports IPv4/IPv6 packet Checksum Offload Engine to reduce CPU loading, including IPv4 IP/TCP/UDP/ICMP/IGMP & IPv6 TCP/UDP/ICMPv6 checksum check & generation
- Supports Wake-on-LAN Function and Rea lWoW!
- The ESD protection is ± 8KV by contact and ± 15KV by air
- Supports IEC60601 2xMOOP and 2xMOPP
- Advanced Power Management Features
- Auto detection with Extended Next Page capability (XNP)
- Compatible with NBASE-T Alliance PHY Specification
- Supports IEEE 802.1Q VLAN tagging
- Thermal management
- Support jumbo frame to 16k bytes
- Supports IEEE802.1P layer 2 Priority Encoding
- Supports power down/link down power saving
- SupportsIEEE802.as (Energy Efficient Ethernet)
- Integrated Power-on reset circuit.
Applications
- UMPC, MID, Netbook, Ultra-slim NB
- USB-to-LAN Dongle, USB to Fiber Ethernet Dongle
- USB/ Ethernet Home Plug AV Adapter
- Docking Station, Port Replicator, Cradle
- UWB Docking Station, WiMAX-to-USB Modem, 3.5G Mobile Router
- Game Console
- Digital-home Application, Set-Top Box, PVR, PMP, IPTV
- Networked Digital Photo Frame, Digital Media Player
- Networked Printer, POS, Test Instruments
