RW8711 embedded WiFi module series use a serial interface to add state of the art data WiFi wireless operation to any system. The RW8711 WiFi module integrates an ARM processor, RF, 802.11b/g/n MAC and baseband. Featuring a self-contained WiFi subsystem, streamlined and simple connectivity and complete software development environment, the RW8711 allows OEM integrators to incorporate WiFi wireless technology into a broad range that previously did not feature networking capabilities. It is designed to fully support IEEE802.11b Draft 2.0, IEEE802.11g and IEEE802.11n standards.

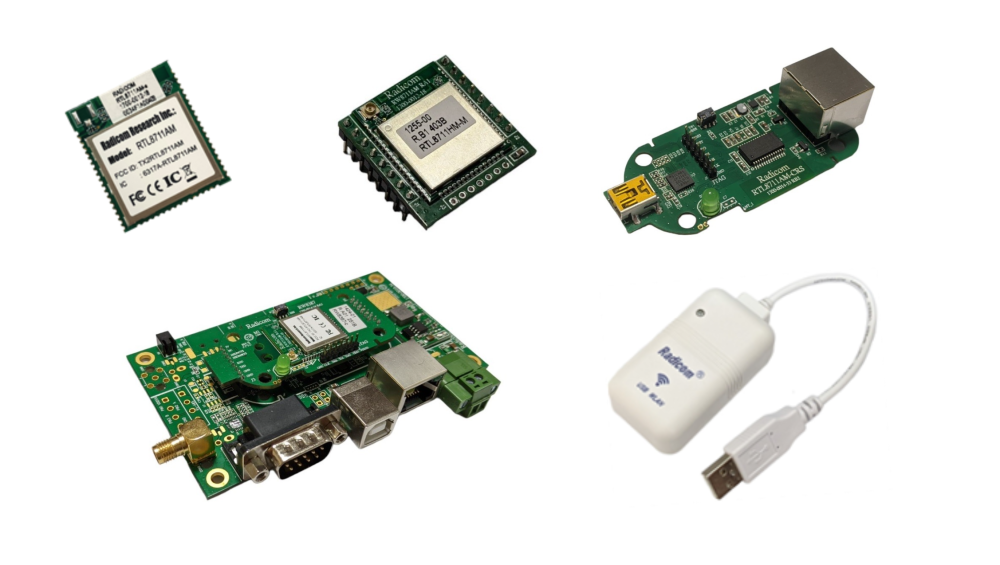

The RW8711 is available in surface mount (SMD) or through-hole (DIP) hardware designs. The surface mount model is RW8711. The through-hole model is RW8711-HM. Combine RW8711-HM with RW8711-MB or RW8711-83 and RW8711-MB3 which is designed for RS232 DB9 directly plug-in. for testing purpose
RW8711-MO compatible with V92HM series Directly drop in to replace V92HM modem series with WiFi capability.
This series also have:
RW8711-E-Mini-45 Use RJ45 to RS232 cable to communicate with WiFi. Mini USB only for power input.
RW8711-E-C-45 Use RJ45 to RS232 cable to communicate with WiFi. Type C USB only for power input.
RW8711-E-Mini-NL built-in mini USB A type pig tail cable Use mini USB interface converted to serial for communication with WiFi.
RW8711-E-C-NL built-in USB type C pig tail cable. Use type C USB interface converted to serial for communication with WiFi
WiFi can be either station mode or AP mode depends on code versio
For more information, please contact: sales@bluepacket.net
Features
· Interfaces: UART, USB, SPI, I2S, I2C, PCM, ADC, PWM
· IEEE 802.11b/g/n compatible WLAN
· IEEE 802.11e QoS Enhancement (WMM)
· IEEE 802.11h TPC, Spectrum Measurement
· IEEE 802.11i (WPA, WPA2), Open, shared key, and pair-wise key authentication service
· HTTPS/SSL, TCP/UDP, ARP, ICMP, mDNS
· Built-in RTOS and TCP/IP support
· Serial port or USB port to serial model available
· Module or Dongle type support
· WiFi WPS/Direct support
· 1T1R
· Printed, PIFA, external antenna(optional)
· 20MHz and 40MHz bandwidth transmission
· Maximum 19 GPIO pins available
· NFC support
· Configurable through AT commands
· Low power 3.3V operation
· Extended operating temperature: -40℃ to +105 ℃ (Depends on model)
· Small size: RW8711 SMD module = 0.89" x 0.75" x 0.10" [22.5 x 19.0 x 2.5mm]
· Supports WiFi Client (Station) and Host (Access Point) modes
· No powerful host processor required
· Customized I/O available to meet OEM requirements
· Firmware upgradeable through serial port
· Supports power saving mode
· Integrated ARM Cortex-M3 processor and on chip memory for complete WLAN subsystem functionality
· OTA over the air programming
Approvals
FCC/IC/CE, TELEC, KC, SRRC, CB, NCC, AS/NZS.. (Model depends)
RoHS Compliant
