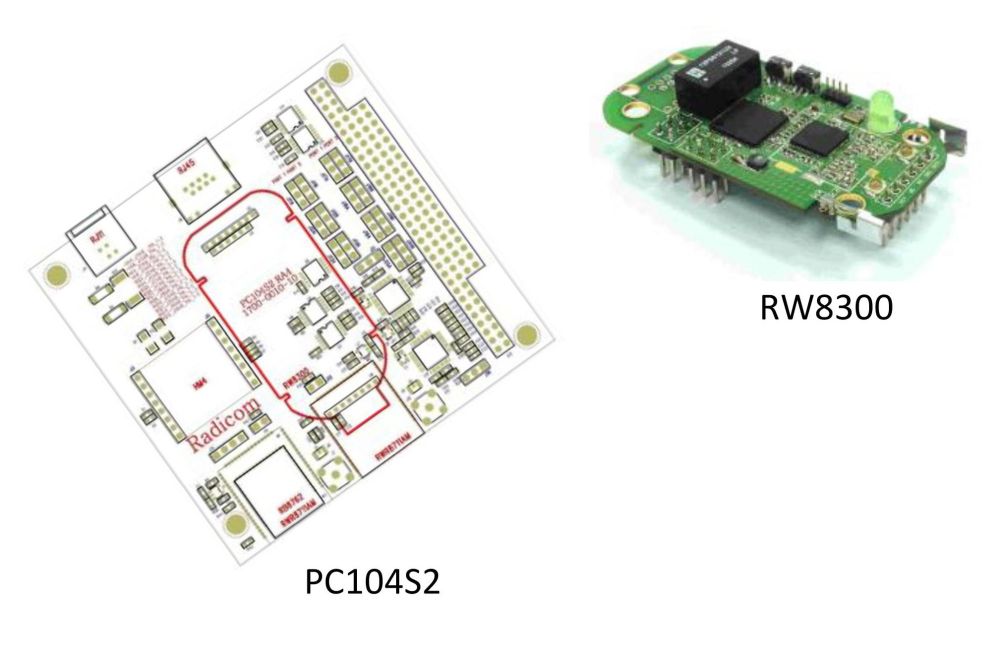

PC104S2-W3 PC104 network adapter. is the perfect solution for integrating Ethernet and/or Wi-Fi wireless applications into many different types of embedded host or remote equipment. The daughter card of RW8300 series is all new Wi-Fi/LAN with Serial Port.It is the perfect networking center solution for embedded system to integrate Wi-Fi, Ethernet or PC104 into a single platform.
The AIO (All-In-One) networking capability provides many functions, such as single port router, Wi-Fi adapter, Ethernet adapter, Hotspot, Wi-Fi Repeater or WLAN Bridge, with host/device capability for various applications.
It can turn any Ethernet LAN port to a WiFi hotspot or connect PC or Laptop into a WiFi Wireless Access Point. Any WiFi device such as iPhone, iPod, PDA, within range can connect to Internet by sharing your RW8300 Access Point.
PC104S2-W3-NW is a Ethernet/LAN only version without wireless capability.
For more information, please contact: sales@bluepacket.net
Features
PC104S2-W3-NW model:
- RoHS compliant
- Extended temperature
- PC/104 interface
- Support PC/104 8bits/16bits connectors
- Support Com Port 1~4, IRQ3~7, IRQ9~12, and IRQ15
- One Ethernet/LAN port
- Router capability
- Ethernet serial adapter
- Built-in TCP/IP stack
- Support DHCP for LAN
- Frame aggregation for increased MAC efficiency (A-MSDU, A-MPDU)
- Low latency immediate High-Throughput Block Acknowledgement (HT-BA)
- Long NAV for media reservation with CF-End for NAV release
- PHY-level spoofing to enhance legacy compatibility
- Support IEEE802.3 & IEEE802.3u
- Support IEEE802.3x full duplex flow control
- Support IEEE802.3az Energy efficiency
- FCC/IC/CE Certified (on RW8300 module only)
PC104S2-W3 model:
- RoHS compliant
- Extended temperature
- PC/104 interface
- Support PC/104 8bits/16bits connectors
- Support Com Port 1~4, IRQ3~7, IRQ9~12, and IRQ15
- One Ethernet/LAN port
- Router capability
- Ethernet serial adapter
- Built-in TCP/IP stack
- Support DHCP for LAN
- Frame aggregation for increased MAC efficiency (A-MSDU, A-MPDU)
- Low latency immediate High-Throughput Block Acknowledgement (HT-BA)
- Long NAV for media reservation with CF-End for NAV release
- PHY-level spoofing to enhance legacy compatibility
- Support IEEE802.3 & IEEE802.3u
- Support IEEE802.3x full duplex flow control
- Support IEEE802.3az Energy efficiency
- Support IEEE 802.11b/g/n compatible WLAN
- Support IEEE 802.11e QoS Enhancement (WMM)
- Support IEEE 802.11h TPC, Spectrum Measurement
- FCC/IC/CE Certified (on RW8300 module only)
- Support IEEE 802.11i (WPA, WPA2, WEP). Security ~ Open, shared key, and pair-wise key authentication services
- Backward compatible with 802.11b/g devices while operating at 802.11n data rates
- IEEE 802.11b/g/n compatible WLAN adapter (WiFi model only)
- WiFi serial adapter
- 20MHz and 40MHz bandwidth transmission
- Operates in 2.4GHz Frequency Range
- Support WPS mode
- Channel management and co-existence
- Support Wake-On-WLAN via Magic Packet and Wake-up frame
- Transmit Opportunity (TXOP) Short Inter-Frame Spaces (SIFS) bursting for higher multimedia bandwidth
- Short Guard Interval (400ns)
- DSSS with DBPSK and DQPSK, CCK modulation with long and short preamble
- Selectable digital transmit and receive FIR filters
- Support WiFi AP/Client (WiFi model only)
Applications
- PC104 networking router
- PC104 to Ethernet/LAN
- PC104 to Ethernet/WiFi
- Hot Spot Sharing
- LAN to WLAN
