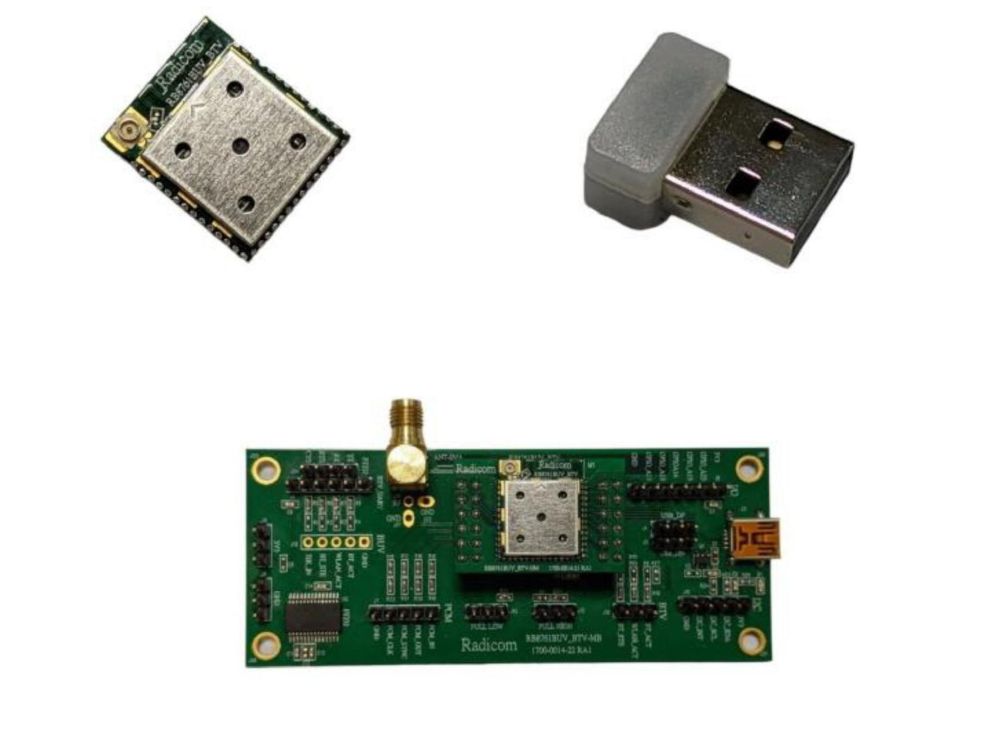

RB8761B series with a UART RB8761BTV / USB RB8761BUV interface Bluetooth module and RB8761BUV dongle. It combines BT Protocol Stack (LM, LL, and LE), BT Baseband, modem, and BT RF in product.
The RB8761B series Bluetooth solution complies with Bluetooth core specification v5 and supports dual mode (BR/EDR + Low Energy Controllers). It is compatible with previous versions, including v2.1 + LE. For BR/EDR, it allows multiple active links in either slave mode or master mode. For Low Energy, it supports multiple states and allows multiple active links in slave mode. A BR/EDR link and an LE link can be active at the same time
With software stacks, profiles and commands built in, the RB8761B series is capable of communicating with both single mode Bluetooth Smart devices, such as watches, heart-rate monitors, trainers, etc., as well as the dual mode ‘classic’ Bluetooth devices that act as hubs for sensor information.
For more information, please contact: sales@bluepacket.net
Features
Bluetooth 5 specification compliant
- Single-end RF radio output with high performance 10dBm of BR transmitter power and -94.5dBm 2M EDR receiver sensitivity.
- Supports Bluetooth classic (BDR/EDR)
- Supports Bluetooth Low Energy (BLE)
- Host Interface
- RB8761BUV Complies with USB1.1 full speed mode.
- RB8761BTV Complies with HS-UART configurable baud rate for Bluetooth
- Bluetooth Controller
- Compatible with Bluetooth v2.1 Systems
- HS-UART interface for Bluetooth data transmission compliant H5 specification
- Integrated MCU to execute Bluetooth protocol stack
- Supports all packet types in basic rate and enhanced data rate
- Supports Secure Simple Pairing
- Supports multiple Low Energy states
- Fast AGC control to improve receiving dynamic range
- Integrated 32K oscillator for power management
- Supports Power Control
- Supports TX +10dBm maximum output power for Bluetooth BR/BLE
- Supports TX +7.5dBm maximum output power for Bluetooth EDR
- Operating voltage:4.75V to 5.25V
- Temperature range: 0°C to +70°C
Applications
Computing devices add-on including:
- PCs
- All-in-Ones
- Laptops
- Netbooks
- Tablets
Embedded devices including:
- Digital TVs
- Set-top Boxes
- Medical Device
- Remote controller
