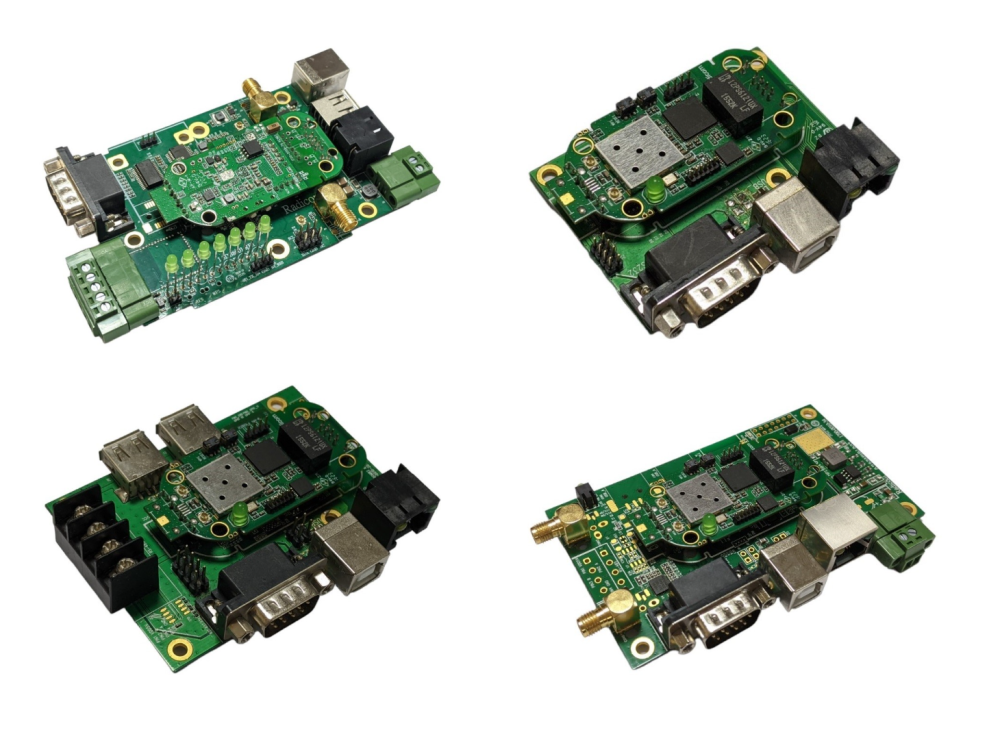

RW8300M with MB Series industrial WiFi/Ethernet to Serial/USB product line is all new wireless to wire gateway solution. With built-in powerful CPU to process all necessary functions and features, the series product line is perfect solution for remote data communication through WiFi/Ethernet to Serial Port or USB port in a single platform. The networking capability provides many functions, such as TCP/IP, SLIP, ICMP, ARP, DHCP client, DNS, FTP client, POP3, SMTP, Telnet server and UDP and powerful security features.
RW8300M with MB Series offers various solutions for a Wireless to Wire interface. It provides RS232/RS422/RS485 for various serial interfaces and also provides WiFi /Ethernet/modem communication. The Series is with WiFi AP router or device capabilities. RW8300M with MB Series is perfect solution for all serial interfaces to Ethernet.
The onboard Ethernet functions are designed to meet the widely adopted IEEE Std. 802.3™ with automation and buffering. The integrated serial port includes standard serial terminal features such as flow control, character length and a DTE speed of up to 921.6Kbps. The series includes Flash memory allowing for updating firmware with the latest enhancements and for custom applications.
For more information, please contact: sales@bluepacket.net
Features
- Multi-countries certification
- 5V from USB port or 12V~24V from terminal block or DC jack
- 15kV ESD protection
- 1.5kV RJ45 isolation barrier
- RS232 and RS422/RS485 in separate connector
- USB host for extended capability: For ex., flash drive as recorded device
- TLS1.2 mode
- WPA2 AES
- Secured remote upgradability
- Optional various sensors supported
- USB Ethernet adapter
- USB 1.1/2.0 and OTG (optional)
WiFi Features
- WiFi AP/Client
- Router capability
- IEEE 802.11b/g/n compatible WLAN adapter
- WiFi Serial adapter
- 20MHz and 40MHz bandwidth transmission
- Operates in 2.4GHz Frequency Range
- Support WPS mode (Optional)
- Backward compatible with 802.11b/g Devices while operating at 802.11n data rates
- Frame aggregation for increased MAC efficiency (A-MSDU, A-MPDU)
- Low latency immediate High-Throughput Block Acknowledgement (HT-BA)
- Long NAV for media reservation with CF-End for NAV release
- PHY-level spoofing to enhance legacy compatibility
- Built-in TCP/IP stack
- Channel management and co-existence
- Support Wake-On-WLAN via Magic Packet and Wake-up frame
- Transmit Opportunity (TXOP) Short Inter-Frame Spaces (SIFS) bursting for higher multimedia bandwidth
- Short Guard Interval (400ns)
- DSSS with DBPSK and DQPSK, CCK modulation with long and short preamble
- Selectable digital transmit and receive FIR filters
- Support DHCP for WLAN
- One Ethernet port
- Support IEEE 802.11b/g/n compatible WLAN
- Support IEEE 802.11e QoS Enhancement (WMM)
- Support IEEE 802.11h TPC, Spectrum Measurement
- Support IEEE802.3 & IEEE802.3u
- Support IEEE802.3x full duplex flow control
- Support IEEE802.3az Energy efficiency
- Support IEEE 802.11i (WPA, WPA2, WEP). Security ~ Open, shared key, and pair-wise key authentication services
Ethernet Features
- Designed to meet IEEE Std. 802.3™
- Supports IEEE 802.3az energy efficient Ethernet ability for 100Base-TX
In full duplex operation and 10Base-T in full/half duplex mode
- Supports Green Ethernet
- Cable length power saving
- Link down Power saving
- Supports link down power saving in Ethernet PHY receivers.
- Ethernet port auto-crossover function.
- Complete Serial-to- Ethernet solution with network processor, MAC (media access controller) and PHY interface.
- Multiple IP Address Configuration Modes: DHCP / Static IP mode
- Supports TCP/IP, ICMP, ARP, DHCP client, DNS, FTP client, POP3, SMTP, Telnet server and UDP protocols
- 10/100Mbps Ethernet
- Web-based configuration
- LED I/O to reflect Ethernet connection and link activity
Serial Port Features
High speed (921.6Kbps) UART
Baud rates:2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600
Parity Bits: Odd, Even, None
Data Bits: 7, 8 ~ Stop Bits: 1 or 2
Hardware (RTS/CTS) flow control
Remotely access serial port via Internet application
640/576 bytes Transmit/Receive FIFO buffer.
Applications
- Ethernet to serial ports (RS232 or/and RS422/RS485) or I/O pins
- WiFi to serial ports or I/O pins
- USB to Ethernet/WiFi/Serial ports or I/O pins
- Extended USB host for USB devices plug in.
- Gateway, WISP or Bridge to other Ethernet
- General I/O pins for control or input
