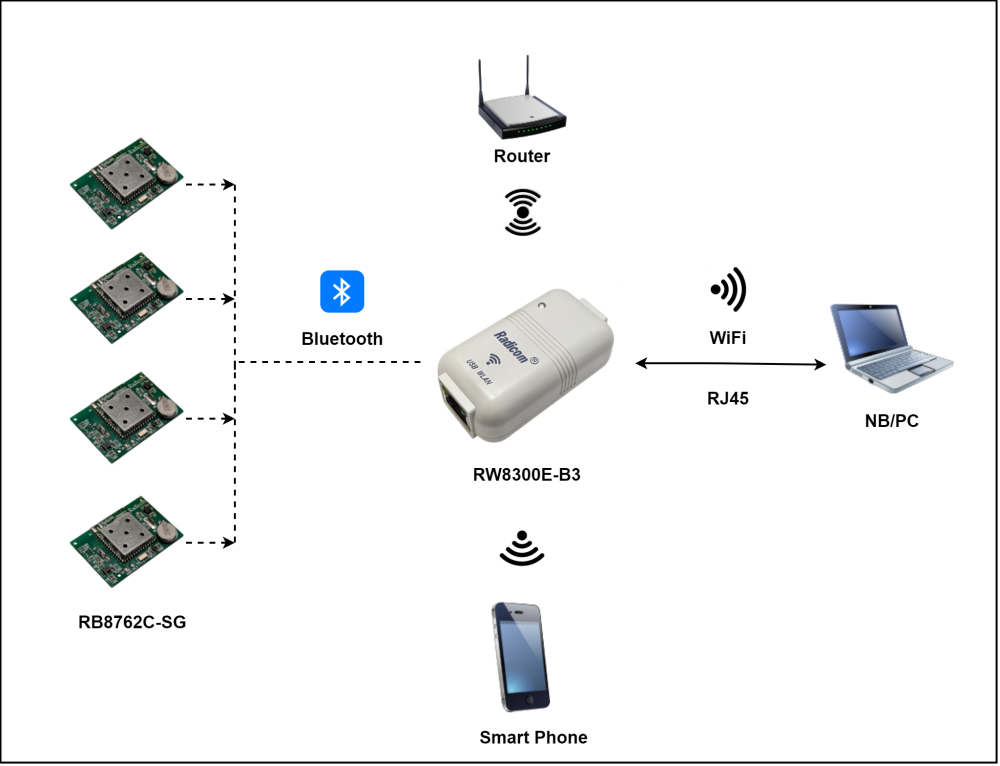

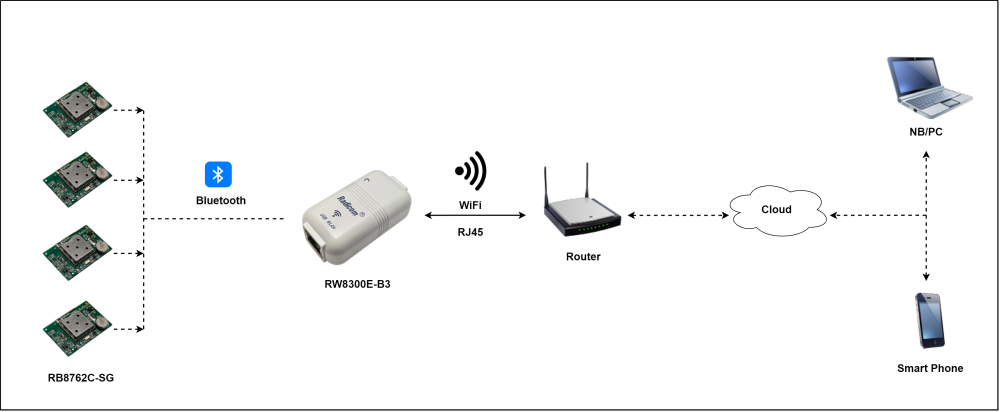

RB8762C-SG/RW8300E Sensor recorder System including vibration G sensor and/or temperature sensor tags and an internet gateway device uses as a complete long time monitoring and recording system from remote end as well as can be immediately accessed from a smart phone to add state of the art noncontact short distance or long range remote monitoring application. The RB8762C-GS Sensor tags runs under ultra low power and integrates a powerful ARM processor, RF, baseband, and 256KB embedded flash memory. Together with RW8300E-B3 internet gateway which is embedded a long range WiFi and LAN remote capability featuring a self-contained various long term monitoring/recording system. With smart phone app and easy software development environment for remote monitoring web configuration, the system can be easily adapted to a broad range application that previously did not feature wireless sensing capabilities. It is designed to support single or up to 4 multiple sensors system
The RB8762C-SG tag is available in a standalone or PCBA which can be integrated into other system board easily
For more information, please contact: sales@bluepacket.net
Features
Bluetooth
- Support Bluetooth 5.3 core specification
- Various sensor measurement and long term recording transmitter
- Ultra low power consumption with intelligent PMU
- Support LE low duty directed advertising
- Support GAP, ATT/GATT
- Generic Applications for GAP Central, Peripheral, Observer and Broadcaster Roles
- On-board antenna
- Support wake-up interrupt and watch dog timer
- Firmware upgradable from OTA
- High receiving sensitivity
- CR2032 3V battery power input
- Operating temperature: -20℃ ~ +70℃(Depends on temperature range of battery)
- Small size: 0.87” x 1.26” x 0.30” (22.0 x 32.0 x 7.7mm)
Wi-Fi/LAN
- IEEE 802.11b/g/n compatible WLAN
- WiFi AP/Client
- Router capability
- 100Mbps/10Mbps 10 based T
- WiFi to LAN and LAN to WiFi
- Router and switch capability
- 20MHz and 40MHz bandwidth transmission
- Backward compatible with 802.11b/g Devices while operating at 802.11n data rates
- Support WPS mode
- Low latency immediate High-Throughput Block Acknowledgement (HT-BA)
- Long NAV for media reservation with CF-End for NAV release
- PHY-level spoofing to enhance legacy compatibility
- Channel management and co-existence
- Support Wake-On-WLAN via Magic Packet and Wake-up frame
- Short Guard Interval (400ns)
- WiFi USB adapter
- USB Ethernet adapter
- USB 1.1/2.0 and OTG (optional)
- Operates in 2.4GHz Frequency Range
- Frame aggregation for increased MAC efficiency (A-MSDU. A-MPDU)
- DSSS with DBPSK and DQPSK. CCK modulation with long and short preamble
- On-board antenna
- Built-in TCP/IP stack
- Support DHCP for LAN
- Transmit Opportunity (TXOP) Short Inter-Frame Spaces (SIFS) bursting for higher multimedia bandwidth
- Selectable digitally transmit and receive FIR filters
- One Ethernet port
- Operating temperature: -30℃ to +75℃(Depends on model)
- Support IEEE 802.11b/g/n compatible WLAN
- Support IEEE 802.11e QoS Enhancement (WMM)
- Support IEEE 802.11h TPC. Spectrum Measurement
- Support IEEE802.3 & IEEE802.3u
- Support IEEE802.3x full duplex flow control
- Support IEEE802.3az Energy efficiency
- Support IEEE 802.11i (WPA. WPA2. WEP). Security ~ Open. shared key. and pair-wise key authentication services
- Support TLS mode
- Firmware upgradable
Approvals (Model depends)
CE Marked
- EN 60950-1:2006/AMD 11:2009 /AMD 1:2010/AMD 12:2011/AMD 2:2013
- EN55024:2010+A1:2015
- EN55032:2015.
- EN 61000-3-2:2014
- EN 61000-3-3:2013
- ETSI EN 301 489-1 V1.9.2
- EN 301 489-17 V2.2.1
- ETSI EN 300 328 V2.1.1
- ETSI EN 300 328 V2.2.2
- EN 62311:2008
- EN 62311:2020
Medical E&E Certification
- IEC 60601-1:2005/A1:2012
- EN 60601-1: 2006 + A1: 2013
Medical CE/EMC Certification
- EN 60601-1-2:2014 Ed4.0
- EN 60601-1: 2006 + A1: 2013
FCC Certification
- 47 CFR FCC Part 15 Subpart B 2016
- FCC Part 15.247
- FCC part 15 Subpart B
IC Certification
- RSS-247 Issue 2 Feb 2017
- RSS-Gen Issue 5 Mar 2019
RoHS 3 compliant
